Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder

$404.00

Out Of Stock

Zoom

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder

POWER TO THE PODCAST

Podcast creators are a special breed. They require a unique set of audio features, along with the flexibility of a proper mixing console. The LiveTrak L-8 combines Zoom’s famous audio performance with features made for podcasters.

SOUND PAD MAGIC

Press a button to play intros, outros, jingles, ads, and sound effects. With 6 easily-assignable Sound Pads, the right sound is at your fingertips.

FIRST-TIME CALLER, LONG-TIME LISTENER

Remote interviews are a snap with the L-8; connect your phone via the provided TRRS cable. The Mix-Minus function automatically prevents echo and feedback to and from the caller. Or use the USB connection to route audio from Skype, Facetime, Hangouts, Slack, and more.

FREEDOM OF SPEECH

Zoom’s preamps are famous for a good reason: they’re transparent, robust, and ultra-reliable. The L-8 features six independent Zoom preamps, built to handle anything from a whisper to a raucous debate.

A TRACK FOR EVERYONE

The pros know that when you record everyone on their own separate track it just sounds better and provides more flexibility in the edit. The L-8 records separate tracks directly to your SD card, enabling you to edit them later.

Specifications
Form Factor Desktop
Number of Tracks 8
Maximum Simultaneous Tracks 12 x Recording / 10 x Playback
Display LCD (Backlit)
Maximum Sampling Rate 96 kHz / 24-Bit
Meters 12 x 9-Segment LED

Signal Processing

Gain/Trim Range Mic/Line Inputs:
+10 dB to +54 dB (Hi-Z Off)
-3 dB to +41 dB (Hi-Z On)
High-Pass Filter 75 Hz, 12 dB/Octave
EQ Parameters High: ±15 dB at 10 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Low: ±15 dB at 100 Hz (Shelving)
Built-In Effects 8 x Effect (Type Unspecified)

Connectivity

Analog Audio I/O 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
4 x Combo XLR-1/4" TRS Balanced Mic/Line Input
2 x 1/4" TS Unbalanced Line Input
1 x 1/8" / 3.5 mm TRRS Unbalanced Smartphone In/Out
2 x XLR 3-Pin Balanced Line Output
4 x 1/4" TRS Unbalanced Headphone Output
Phantom Power 48 V
Host Connection Protocol USB 2.0

Performance

Frequency Response 20 Hz to 20 kHz +0/-1 dB (at 44.1/48 kHz)
20 Hz to 40 kHz +0/-3 dB (at 96 kHz)
Maximum Input Level Mic/Line Inputs:
-2 dBu for 0 dBFS (without Pad)
+24 dBu for 0 dBFS (with Pad)
1/4" Line Inputs:
+3 dBu (Unbalanced)
1/8" / 3.5 mm Inputs:
+3 dBu
Maximum Output Level XLR Outputs:
+14.5 dBu
Headphone Output Power 10 mW per Channel into 60 Ohms (Max)
Impedance XLR Inputs:
3 Kilohms
1/4" Line Inputs:
3 Kilohms (Balanced)
10 Kilohms (Unbalanced)
1/4" Hi-Z Inputs:
1 Megohm
1/8" / 3.5 mm Inputs:
10 Kilohms
XLR Outputs:
100 Ohms
1/4" Outputs:
10 Ohms
EIN ≤ 121 dBu (IHF-A, +54 dB Gain, 150-Ohm Source)

Digital Audio

Audio File Formats WAV
Sample Rates 44.1 / 48 / 96 kHz (Record)
Bit Depths 16 / 24-Bit (Recording)
24-Bit (AD/DA Conversion)

Audio Storage & Playback

Supported Media SD Card
Memory Card Slot 1 x SDXC
Supported Media Capacity SDHC:
4 GB Minimum to 32 GB Maximum
SDXC:
64 GB Minimum to 512 GB Maximum

Compatibility

OS Compatibility macOS 10.12 or Later
Windows 7 or Later (32/64-Bit)
iOS 10 or Later
*As of November 2021: Check with the manufacturer for the most up-to-date compatibility
Processor Requirement Mac:
Intel Core i3 or Better
PC:
Intel Core i3 or Better
Required Hardware Available USB 2.0 Port, USB 3.0 / 3.1 Gen 1 Port ([or])
Lightning to USB Adapter (Not Included)

Power

Power Requirements Battery, AC/DC Power Adapter (Not Included), USB Bus Power
AC/DC Power Adapter 5 VDC at 1 A (Included)
Power Consumption 5 W

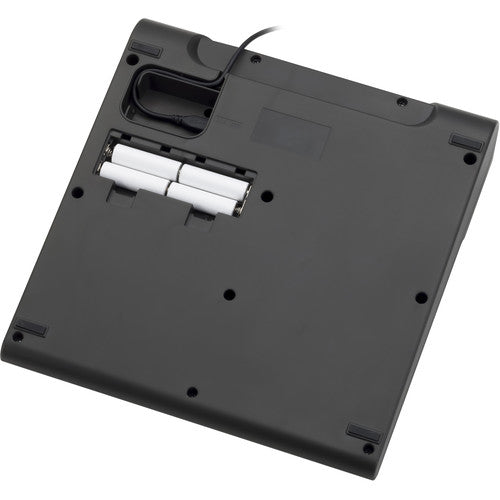

Battery Type 4 x AA
Approximate Battery Life 2 Hours (Alkaline, 4 Channels, Recording, Phantom Off, Backlit Display, Stamina Mode/Battery Save, 62-Ohm Load)
3.5 Hours (NiMH, 4 Channels, Recording, Phantom Off, Backlit Display, Stamina Mode/Battery Save, 62-Ohm Load)
6.5 Hours (Lithium, 4 Channels, Recording, Phantom Off, Backlit Display, Stamina Mode/Battery Save, 62-Ohm Load)

Physical

Dimensions 10.6 x 11.1 x 2.9" / 26.8 x 28.2 x 7.4 cm
Weight 3.4 lb / 1.6 kg

Packaging Info

Package Weight 4.975 lb
Box Dimensions (LxWxH) 13.9 x 13.4 x 3.8"
